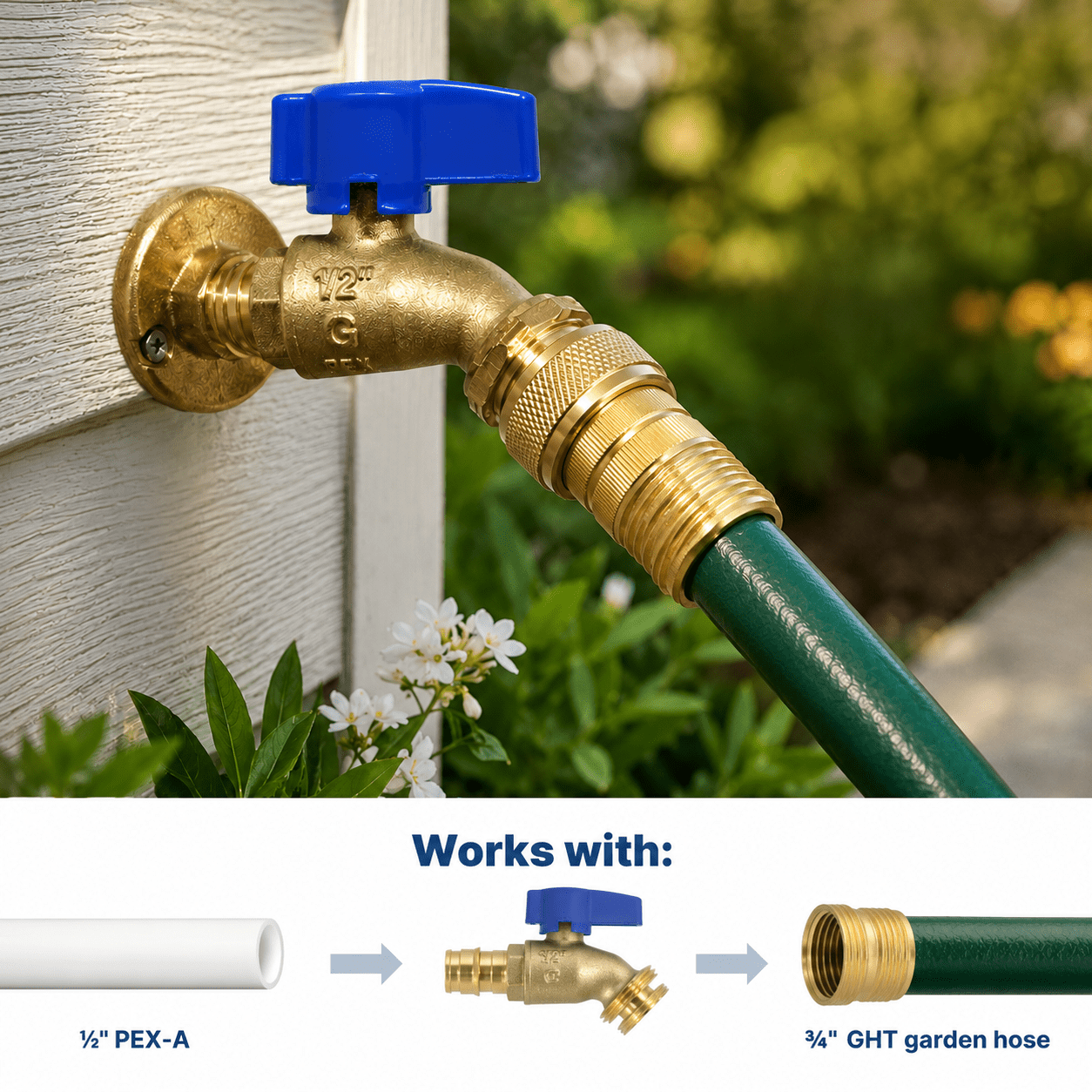

XFITTING Pex A Expansion x GHT Hose Bibb Valve

The XFITTING PEX-A Expansion Hose Bibb is built for outdoor residential and light commercial plumbing where code compliance, freeze protection, and a secure PEX-A connection are required in one fitting.

The 1/2" F1960 expansion inlet connects directly to PEX-A tubing using standard expansion rings — no soldering, no crimp tools, no adapters needed. The built-in anti-siphon valve meets ASSE 1011, which satisfies the backflow prevention requirement for outdoor hose bibs in most US building codes, eliminating the need for a separate vacuum breaker.

When the hose is disconnected, the valve drains automatically to protect against freeze damage — critical for installations in unheated areas, crawlspaces, and exterior walls in cold climates.

All brass components are lead-free and NSF 61 certified for potable water contact. The mounting flange allows direct wall installation with a clean finished appearance.

Specifications: Inlet 1/2" PEX-A F1960 · Outlet 3/4" GHT · 125 PSI rated · 33°F–180°F · ASSE 1011 certified · NSF 61 · Lead-free brass

Key Features:

PEX-A EXPANSION CONNECTION — Fits 1/2" PEX-A tubing using standard F1960 expansion rings. Compatible with Uponor, Rehau, and Watts PEX-A systems. No crimp tool needed.

ANTI-SIPHON / BACKFLOW PROTECTION — Meets ASSE 1011 anti-siphon standard. Required by code in most jurisdictions for outdoor hose connections — passes inspection without additional backflow preventer.

FREEZE-RESISTANT DESIGN — Drains automatically when hose is disconnected, preventing pipe burst damage in freezing temperatures. Rated for outdoor installation in all US climate zones.

LEAD-FREE BRASS CONSTRUCTION — Complies with NSF/ANSI 61 and California AB 1953 lead-free standards. Safe for potable water. Suitable for residential and commercial applications.

DIMENSIONS & SPECS — Inlet: 1/2" PEX-A expansion. Outlet: 3/4" GHT (garden hose thread). Working pressure: 125 PSI. Temperature range: 33°F–180°F. Includes mounting flange.
